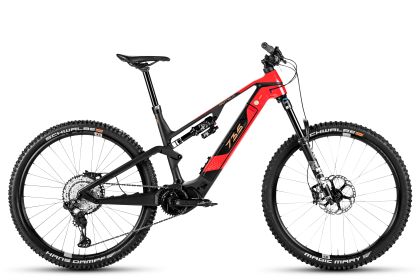

R.X735 Pro
Rotwild R.X735 Pro - The King of the Trail
The Shimano XT 4-piston disc brakes with Fin Pad pads and 203 mm Ice Tech brake discs provide the rider with safety and keep the bike excellently on track. The "735" gets its grip from the 29" inch Crankbrothers Synthesis Enduro 19 wheels made of aluminium with Schwalbe Evo tyres. With these, the bike rolls over larger roots, stones, steps, blocked passages or stairs as if it were on rails. The 150 mm travel of the Fox 36 Performance Elite suspension fork E-Tuned ensures that bike and rider swallow all the specialities of a trail.
Despite the larger battery, the R.X735 Pro in size L only weighs around 21 kilos. With the flat steering angle of 65.5 degrees, the bike gives the rider the stability and security he or she needs for sporting challenges. Downhill with speed or uphill with power? The R.X735 is always an active sparring partner.
This riding experience can be personalised via the special E-Tube software. The APP for mobile devices from Shimano offers two setups.
HighLights:
- Frame: Full Carbon, hand made, from high modulus Carbon fibres
- Fork: 150 mm travel / 110x15 mm / 44 mm offset
- Shock: 144 mm travel / 210x52.5 mm
- Tire (front): 29x2.6 (755x65)
- Tire (rear): 29x2.6 (755x65)
- Motor: Shimano EP801 / 2 profiles / up to 85 Nm torque
- Battery: IPU735 / 720 Wh / 3.6 kg / Carbon / 4.5 A charger
- Headset with Blocklock
![Rotwild IPU735](/media/highlights/rotwild/rotwild-rx735-pro-rx735f22p-mood-6319.jpg)
Rotwild IPU735
The target group-specific energy storage of our Aggressive Series with a battery capacity of 720 Wh features high-performance cell technology (type 21700/5.0 Ah), a weight-optimized, handmade Carbon housing with a low-positioned weight of 3.6 kg.
![New linkage construction](/media/highlights/rotwild/rotwild-rx735-pro-rx735f22p-mood-7298.jpg)
New linkage construction
The characteristic damper linkage of the R.X735 is partly made of Carbon in high-modulus fiber and a weight-optimized aluminum yoke.
![Shimano EP8](/media/highlights/rotwild/rotwild-rx735-pro-rx735f22p-mood-7259.jpg)
Shimano EP8
Maximum acceleration and efficient pedaling with natural driving feel guarantees the Shimano Motor with just under 2,500 g, 85 Nm, low pedaling resistance, high motor efficiency at low noise levels and seamless fade-out / fade-in at the support limit. In addition, the support mode can be configured via three different maps.
![Quick Release [IPU735]](/media/highlights/rotwild/rotwild-rx735-pro-rx735f22p-mood-6294.jpg)
Quick Release [IPU735]
The battery of the IPU735 can be unlocked in seconds at the push of a button and easily removed. To prevent theft, the button can be blocked by means of a supplementary screw.
![Rotwild R.X735 Pro Geometry](/media/highlights/rotwild/geometry-r735-fs.jpg)
Geometry
Specifications
Electric System |
|
---|---|
Motor | Shimano EP801 |
Motor Type | Central |
Battery | IPU735 QR Carbon |
Display | Shimano EM800 |
Frame |
|
Frame | High Modulus Carbon |
Shocks |
|
Fork | Fox 36 Float Performance Elite |
Rear Shock | Fox Float X Performance |
Gears |
|
Derailleur | Shimano XT Di2 8150 SGS Hyperglide+ |
Shifter | Shimano XT|/ Shimano XT Di2 8150 |
Crankset | e*thirteen Direct Mount Chainring \ e*thirteen Plus |
Cassette | Shimano CS 7100 |
Chain | Shimano HG 7100 |
Brakes |
|
---|---|
Brakes | Shimano XT 8120 |
Discs | Shimano RT800/810 |
Wheels |
|
Wheel | 29'' |
Rims | Crankbrothers Synthesis Enduro I9 |
Tires | Schwalbe Magic Mary / Hans Dampf |
Handlebar and Saddle |
|
Stem | e*thirteen Plus |
Handlebar | e*thirteen Plus |
Headset | Acros RW735 1.5 Headset |
Grips | Ergon GD10 Slim |
Saddle | Ergon SM Comp |
Seatpost | Eightpins H01 |
