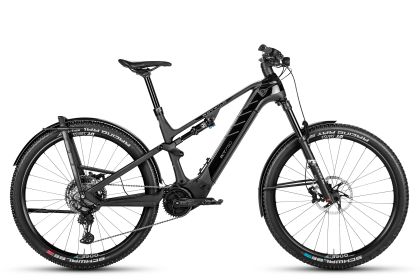

R.T750 Tour
Rotwild R.T750 Tour - The Everyday Hero
Sit comfortably and athletically in the saddle due to the balanced geometry; smooth handling is the next comfort benefit, even on long stretches. The combination of sport and transport continues to appear in characteristics such as voluminous tyres, a forgiving chassis with 130 mm travel and roadworthy features. Crossover through the forest, even at a fast sporty pace, as there is a mountain bike laying dormant in the R.T750.
The bike thrives over roots, gravel and on forest tracks, while the robust, high quality finish easily keeps up in every gear. If needed the R.T750 is also practical. With a luggage rack system and mudguards its the solution for all everyday touring: receptive, powerful and ambitious. A bike that fits perfectly into an active life, with all the possibilities and characteristics required for such a life.
HighLights:
- Frame: Full Carbon, hand made
- Fork: 140 mm travel / 110x15 mm / 51 mm offset
- Shock: 130 mm travel / 185x50 mm
- Tire (front): 29x2.35 (750x60)
- Tire (rear): 29x2.35 (750x60)
- Motor: Brose Drive S Mag / Air Cooler / up to 90 Nm torque
- Battery: IPU750 / 720 Wh / Aluminium / 3,7 kg / 4,5 A charger
- Headset with Blocklock
- City kit with integrated lights, full fenders, kickstand, pannier carrier and bell
![Full Carbon Chassis](/media/highlights/rotwild/rotwild-rt750-tour-black-rt750f23t-mood-1000.jpg)
Full Carbon Chassis
For an ideal weight to stiffness ratio, the complete Carbon structure is used and only structurally necessary aluminum thread inserts are added.
![Fully Integrated Cable Routing](/media/highlights/rotwild/rotwild-rt750-tour-ht-rt750h22t-mood-1170.jpg)
Fully Integrated Cable Routing
Precise shifting by avoiding tight radii, optimal protection and a tidy look guarantee the cables fully integrated through the cable shaft in the down tube and the motor housing.
![Rotwild IPU750](/media/highlights/rotwild/rotwild-rt750-tour-fs-rt750f22t-mood-1327.jpg)
Rotwild IPU750
The energy storage of our Extensive Series is equipped with a battery capacity of 720 Wh as well as high-performance cell technology (type 21700/5.0 Ah) and has a weight of 3.8 kg.
![Air Skid Plate](/media/highlights/rotwild/rotwild-rt750-tour-fs-rt750f22t-mood-1329.jpg)
Air Skid Plate
Maximum performance in extreme conditions is made possible by the ribbed aluminum underbody, which protects the engine housing from stone chips while efficiently conducting the engine's heat to the outside.
![Rotwild R.T750 Tour Geometry](/media/highlights/rotwild/geometry-750-fs.jpg)
Geometry
Specifications
Electric System |
|
---|---|
Motor | Brose Drive S Mag |
Motor Type | Central |
Battery | IPU750 |
Display | Brose Display Allround |
Frame |
|
Frame | High Modulus Carbon |
Shocks |
|
Fork | Fox 34 AWL Performance |
Rear Shock | Fox Float DPS Performance |
Gears |
|
Derailleur | Shimano XT 8130 |
Shifter | Shimano XT |
Crankset | e*thirteen Direct Mount Chainring \ e*thirteen Plus |
Cassette | Shimano LG 700 |
Chain | Shimano LG 500 |
Brakes |
|
Brakes | TRP C2.3 |
Discs | RC01E |
Wheels |
|
---|---|
Wheel | 29'' |
Rims | DT Swiss H1900 Spline (30) |
Tires | Schwalbe Racing Ray / Racing Ralph |
Handlebar and Saddle |
|
Stem | Rotwild S240 |
Handlebar | Rotwild B280 AL7075 |
Headset | Acros RW750 1.5 Headset |
Grips | Ergon GA30 Sportive Wing |
Saddle | Ergon SMC Core |
Seatpost | CrankBrothers Highline 3 |
Accessories |
|
Front Light | Supernova M99 Mini Pro High Beam |
Rear Light | Supernova TL3 Pro Led Tail Light |
Mudguards | Curana Fender |
Luggage Rack | Carbon Pannier Carrier |
