R.E735 Core

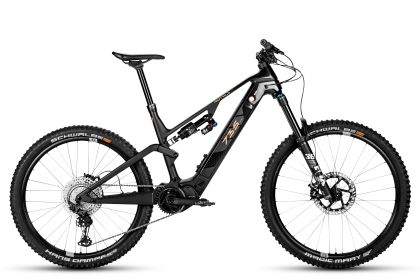

Rotwild R.E735 Core - The Athlete
Reduced to the essentials, the answer is simple: the R.E735 is very agile. At the same time, you stay in the lead in the saddle. Because the bike's handling is 100% Enduro. This is due to the progressive chassis and the Mullet concept. With the 29" wheel at the front, you won't shy away from thick roots, rough stones or blocky passages. The front wheel gives you stability. The smaller wheel (27.5") at the rear takes on the opposite role. It is playful and gives you a lot of grip. Because it is also a little thicker. A shorter chain stay completes the construction of the rear triangle. The power arriving there is seamlessly transferred to the shock by the specially designed linkage. The flat steering angle of 64.5° gives you security at high speeds.
The frame of the R.E735 is made of Full Carbon - from over 1,000 individual blanks of high-modulus fibre. Stable and light. Benefit from the large power reserves of the Integrated Power Unit (IPU) 735 with a battery that effectively delivers 720 watt hours. Remove it quickly and safely from the down tube using the Quick Release developed by Rotwild. The angled removal to the side ensures high rigidity of the frame. The motor heart of the R.E735 beats in the form of the Shimano EP801. It supports you with a torque of up to 85 Nm. If you want to reduce your speed, you can rely on the 4-piston Magura MT5 disc brake. All in all, everything in the Core is trimmed for lightness. In size L, the bike weighs 22.1 kg.
HighLights:
- Frame: Full Carbon, hand made, from high modulus Carbon fibres
- Fork: 170 mm travel / 110x15 mm / 44 mm offset
- Shock: 148 mm travel / 210x55 mm
- Tire (front): 29x2.6 (755x65)
- Tire (rear): 27,5x2.6 (720x65)
- Motor: Shimano EP801 / 2 profiles / 3 support levels / up to 85 Nm torque
- Battery: IPU735 / 720 Wh / Carbon / 4,5 A charger
![High Modulus Carbon](/media/highlights/rotwild/rotwild-re735-core-re735f23c-mood-4388.jpg)
High Modulus Carbon
The frame of the R.E735 is build entirely of Carbon in high-modulus fibre. It is handmade and composed of over 1,000 individual blanks. All the cabling is integrated into the down tube and through the motor housing. For a clean look and riding safety.
![Rotwild IPU735](/media/highlights/rotwild/rotwild-re735-core-re735f23c-mood-1989.jpg)
Rotwild IPU735
The energy storage system in the R.E735 has an effective capacity of 720 Wh. It is harmoniously integrated into the down tube. The angled removal to the side ensures a high degree of rigidity of the frame. The Rotwild Quick Release allows the battery to be removed quickly and safely to the drive side.
![Shimano EP 801](/media/highlights/rotwild/rotwild-re735-core-re735f23c-mood-4355.jpg)
Shimano EP 801
The Shimano EP801 offers up to 85 Nm of torque. Use three support levels and two riding profiles. The Shimano E-Tube app lets you fine-tune your motor experience with up to 15 different riding settings.
![170 mm suspension fork](/media/highlights/rotwild/rotwild-re735-core-re735f23c-mood-4373.jpg)
170 mm suspension fork
A Fox 36 suspension fork with 170 mm travel is used in the front. Enough suspension travel to take on thick roots, rough stones and blocked passages with a lot of confidence. The flat steering angle of 64.5° provides safety at high speeds through traction and control.
![Mullet concept](/media/highlights/rotwild/rotwild-re735-core-re735f23c-mood-1979.jpg)
Mullet concept
The R.E735 uses the mullet concept: a 29" wheel rolls in the front. The rear is smaller at 27.5". This makes the Enduro a skilful symbiosis of stability and safety on the one hand and agility and grip on the other. So that you can take every trail skilfully.
![New chassis construction](/media/highlights/rotwild/rotwild-re735-core-re735f23c-mood-4414.jpg)
New chassis construction
The small rear wheel reduces the installation space. This allows the R.E735 to have a shorter chainstay. The seat stay closes the rear frame triangle. The linkage seamlessly transfers the forces here to the rear shock. The yoke is made of weight-optimised aluminium.
![Rotwild R.E735 Core Geometry](/media/highlights/rotwild/geometry-r735-fs.jpg)
Geometry
Specifications
Electric System |
|
---|---|
Motor | Shimano EP801 |
Motor Type | Central |
Battery | IPU735 QR Carbon |
Display | Shimano EM800 |
Frame |
|
Frame | High Modulus Carbon |
Shocks |
|
Fork | Fox 36 Float Performance |
Rear Shock | Fox Float X2 Performance |
Gears |
|
Derailleur | Shimano XT 8100 |
Shifter | Shimano XT 8100 |
Crankset | e*thirteen Direct Mount Chainring \ e*thirteen Plus |
Cassette | Shimano CS 6100 |
Chain | Shimano HG 7100 |
Brakes |
|
---|---|
Brakes | Magura MDR-P / Magura MT5 HC-W |
Discs | Magura MDR-P |
Wheels |
|
Wheel | 29/27,5'' |
Rims | Crankbrothers Synthesis Enduro |
Tires | Schwalbe Magic Mary Evo / Schwalbe Hans Dampf Evo |
Handlebar and Saddle |
|
Stem | e*thirteen Plus |
Handlebar | e*thirteen Plus |
Headset | Acros RW735 1.5 Headset |
Grips | Ergon GD10 Slim |
Saddle | Ergon SM Enduro Comp |
Seatpost | Eightpins H01 |
