Nessi
Specifications
Electric System |
|
---|---|
Motor | Bafang |
Motor Type | Rear |
Motor Power | 250W (45Nm) |
Battery Type | Li-Ion |
Battery Capacity | 390Wh (36V/10,4Ah) / 520Wh (36V/14Ah) |
Battery Brand | Samsung |
Battery Voltage | 36V |
Display | LCD Digital 450u (5 speeds) / LCD Colour 850C (9 speeds) |
Frame |
|
Frame Sizes | S / M / L |
Frame Material | Aluminium 6061 |
Shocks |
|
Fork | ZOOM Ciudad |
Gears |
|
Gears | 8 Speed |
Derailleur | Shimano Acera |
Shifter | Shimano M315 |
Crankset | 44T |
Cassette | 12-32T |
Chain | KMC |
Brakes |
|
Brakes | Shimano M375 |
Brake handle | Tektro Lever |
Discs | 180 mm \ 180 mm |
Wheels |
|
Wheel | 20" |
Rims | Aluminium double wall |
Tires | Kenda 20" x 2,125" |
Spokes | Carbon steel with copper reinforced heads |
Handlebar and Saddle |
|
---|---|
Stem | 1"1/8 Ahead Folding 25,4mm Adjustable Height/Telescopic |
Handlebar | Straight Short |
Headset | 1"1/8 |
Saddle | Cruiser Gel |
Seatpost | Promax MTB |
Accessories |
|
Front Light | LED |
Rear Light | LED |
Pedals | Wellgo Platform plegables |
Mudguards | Black flexible PVC |
Kickstand | Kickstand |
Luggage Rack | Optional |
Dimensions and Weights |
|
Lenght | 155 cm |
Width | 61,5 cm |
Handlebar Height | 105 cm |
Folded Height | 71 cm |
Folded Lenght | 80 cm |
Folded Width | 43 cm |
Bike Weight | 17,5 kg |
Battery Weight | 2,98 kg |
Total Weight | 20,5 kg |
The manufacturer reserves the right to replace individual parts with components of the same or higher quality.

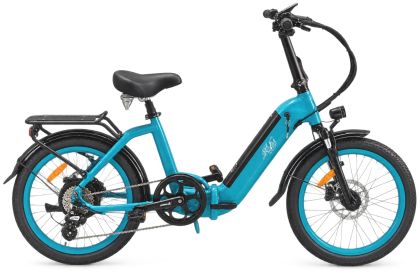

Nessi folding electric bicycle
Description
The Nessi is an excellent Rodars electric folding bike with 20-inch wheels and an attractive and refined compact design, designed to fold down to the minimum and unfold to roll easily and lightly, all in an instant. On the back of this folding electric bike, we will move comfortably on our conventional trips around the city, propelled to its maximum speed, with a range of between 50 and 70 kilometers with the standard battery. Its solid 6061 aluminum frames - with a five-year warranty - has a ZOOM handlebar made of the same material with elegant brown leather grips, adjustable between -10 and 40 degrees, making it easy for riders of different sizes to adopt a straight-backed position.
To make urban riding pleasure, it is equipped with ZOOM front suspension, as well as optional Promax central suspension on the seat post, which absorbs all the bumps and irregularities of the terrain. The wide seat (matching the handlebar grips), with its large springs, will also keep you comfortable and relaxed in the upright riding position.
The Nessi electric folding bike "flies" through the city on 20-inch diameter by 2.195 wide Kenda tires with excellent protection. The tires are shod on double-wall aluminum rims, which give the bike style and aerodynamics, as well as stiffness, while also avoiding the need for maintenance. To control this lightning the rider has Shimano MT200 hydraulic disc brakes on both wheels.
Does it help when climbing steep and long hills? The Nessie is equipped with Shimano's 8-speed gear system, with a gear ratio that allows for smooth and easy shifting.
The mudguards on both wheels to protect our clothes from dirt, the rear luggage rack, and the front and rear lights operated from the display on the handlebars complete the fun when riding through the city - a promise of safety during our night rides.
As with the other options in the Bikelec electric folding range, you can customize your Nessie by choosing from a range of electric assistance system options. The base model is fitted with a brushless intelligent rear motor with 250 watts of power and 45 Newton meters of torque. It can be replaced by another of the same location, with double the power (500 Watts) and a powerful 80 Newton meters of torque, but with a double-walled aluminum rim.
While the on-board computer of the base model has a digital display on the handlebars that offers 5 levels of assistance, from which we will be informed about the complete information of the route and of the electrical system, also allowing us to control the switching on and off of the system in general and of the lights in particular, the digital display can be configured to obtain nine levels of assistance - more options for the rational use of the assistance - through its LCD screen also located on the handlebars, and a wide variety of functions, the possibility of limiting the maximum speed from which the system will cut the thrust or to have the legal throttle that drives us up to 6 km/h..
The Nessie’s 250w motor incorporates a 36 volt, 17 Amp controller and 1:1 PAS (Pedal Assist System). The main option does not include a throttle grip, which can also be optionally incorporated into the handlebars, making pedaling a pure formality while simply leaning back and enjoying an effortless ride.
To power the electrical system the Nessie is equipped with a 10.4 Ampere hour Samsung lithium-ion battery, although as an option you can have 14ah amps in the same space in the center of the frame, conveniently protected and perfectly integrated into the design, ready to charge in the short space of 3 to 4 hours with the supplied smart charger, either on the bike in the saddle or at any location.
