Blizz TRL e90-297

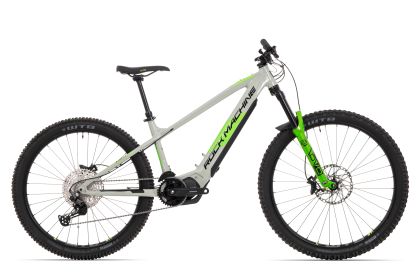

RockMachine Blizz TRL e90-297
A hardtail e-bike with a powerful Shimano EP8 motor featuring 85 Nm. The uncompromising trail frame geometry gives this Blizz generation even more fun factor and control. The 29“/27.5“ mullet setup wheels with plus-size tires will beat the toughest trails. The US-made DVO Diamond E3 suspension with 140 mm travel; dropper post with 150/170 mm travel, depending on the frame size; and ONE1 accessories turn Blizz into the ultimate trail bike.
SHIMANO EP8 motor with 85 Nm
Mullet 29 and 27,5 wheels set up
E-TUBE PROJECT individual e-drive settings via Shimano E-Tube app
Durable frame with specific Trail Ultimate Geometry to maximize bike control on trails
Credit Card
Bank Transfer
Paypal
(+34) 987 790 779
Bikelec LiveChat
WhatsAppSpecifications
Electric System |
|
|---|---|
| Motor | SHIMANO STEPS EP800, 36V, 250W, 85Nm |
| Motor Type | Central |
| Motor Support Limit | 25 km/h |
| Battery | DARFON, 36V, 504 Wh, integrated |
| Battery Type | Li-Ion |
| Display | SHIMANO SC-EM800, Clamp band |
Frame |
|
| Frame | Alloy Al-6061 T6 Custom tubing |
Shocks |
|
| Fork | DVO DIAMOND E3, Tapered, Air, 15x110mm axle, 140mm travel |
Gears |
|
| Gears | 11 |
| Derailleur | SHIMANO DEORE RD-M5100 Shadow Plus |
| Shifter | SHIMANO DEORE SL-M5100-IR RapidFire Plus |
| Crankset | SHIMANO EM600, 165MM |
| Cassette | SHIMANO CS-M5100-11, 11-51T |
| Chain | KMC e11T |
Brakes |
|
|---|---|
| Brakes | SHIMANO M6120 |
| Discs | SHIMANO SM-RT64, 203MM |
Wheels |
|
| Wheel | 29'' |
| Rims | WTB STi 30 |
| Tires | WTB Vigilante TCS Tough/High Grip, 29x2.50" |
| Spokes | Sapim Leader, Stainless Black with secure lock nipples |
| Front hub | SHIMANO HB-MT400-B, 32H, CENTER LOCK, 15x110mm THRU Type AXLE |
| Rear hub | SHIMANO FH-MT400-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE |
Handlebar and Saddle |
|
| Stem | ONE1 TDS-ALD606 Alloy, 35mm, 0° |
| Handlebar | ONE1 Alloy, 9° backsweep, 20mm rise, 760mm, 35mm |
| Headset | ACROS ZS44/EC49 |
| Grips | VELO, Lock-On |
| Saddle | WTB Volt Sport |
| Seatpost | ONE1 Alloy, MT171, 150mm dropper post, 30.9mm |
The manufacturer reserves the right to replace individual parts with components of the same or higher quality.
