Caliope
Specifications
Electric System |
|
---|---|
Motor | Bafang |
Motor Type | Rear |
Motor Power | 500W 48V (80Nm) |
Battery Type | Li-Ion |
Battery Capacity | 560Wh (48V/11,2Ah) |
Battery Brand | Samsung |
Battery Voltage | 48V |
Display | LCD Digital 450u (5 speeds) / LCD Colour 850C (9 speeds) |
Frame |
|
Frame Sizes | M / L / XL |
Frame Material | Aluminium 6061 |
Shocks |
|
Fork | Suntour XCM 120 mm |
Gears |
|
Gears | 8 Speed |
Derailleur | Shimano Acera |
Shifter | Shimano M315 |
Crankset | 44T |
Cassette | 12-32T |
Chain | KMC |
Brakes |
|
Brakes | Shimano M375 |
Brake handle | Tektro Lever |
Discs | 180 mm \ 180 mm |
Wheels |
|
---|---|
Wheel | 28" |
Rims | Aluminium double wall |
Tires | Schwalbe 28" x 2,1" |
Spokes | Carbon steel with copper reinforced heads |
Front hub | Quando |
Handlebar and Saddle |
|
Stem | 1"1/8 Ahead 31,8mm |
Handlebar | Promax |
Headset | 1"1/8 |
Saddle | Velo Plush |
Seatpost | Classic |
Accessories |
|
Front Light | LED |
Rear Light | LED |
Pedals | Wellgo Platform City |
Mudguards | Black flexible PVC |
Kickstand | Kickstand |
Luggage Rack | Portabultos trasero |
Dimensions and Weights |
|
Height | 106 cm |
Lenght | 188 cm |
Width | 70 cm |
Handlebar Height | 106 cm |
Saddle Height | Min: 82 cm / Max: 98 cm |
The manufacturer reserves the right to replace individual parts with components of the same or higher quality.

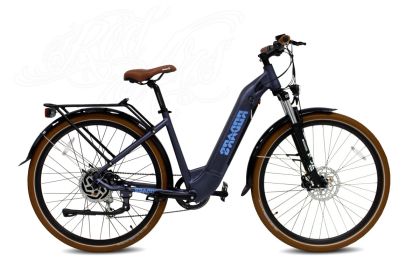

Caliope electric bicycle
Description Calliope Urbana
Calliope, open frame urban electric bicycle, thanks to the extraordinary geometry of the 6061-aluminum frame, we can make use of the Calliope model in different environments, whether your objective is to move around in comfort and safety, on asphalted public roads or on undeveloped paths, an urban electric model like the Calliope will never turn its back on you and will respond to any adverse circumstance that may arise.
Whatever the scenario you imagine, a powerful city model, with an open frame, placing the valuable battery well protected inside the frame, with the aim of keeping the weight as close to the ground as possible, to benefit from the resulting low center of gravity will improve the riding feel and maneuverability of the whole. Ease of access and a decisively excellent riding position make it affordable for everyone.
The impulse to our pedal strokes will be delivered by the reliable 8fun motor with 250 watts and 45 Newton meters of torque, located on the rear wheel axle. A silent and very energetic motor with constant power delivery, enough to tackle any slope with sufficient guarantees. With an engine like this, you will be able to get out of any situation.
Under any circumstances the Samsung Lithium battery integrated into the center of the frame will deliver the requested power supply, well protected inside its casing and at the same time inside the frame, we will not have to keep an eye on it at a stop, we can charge it in its position or remove it in a few seconds to place it in another location.
From the on-board computer on the LCD digital display, we manage all the functions of the electric system, with 5 levels of assistance as standard but extendable from the configuration of the display up to 9 levels of assistance, we can consult the data concerning the route, know the remaining autonomy, make use of the legal accelerator that drives us up to 6 km/h and limit the maximum speed among other features available on the complete display.
A good urban model helps to get the most out of every pedal stroke, for this, the 28" diameter wheelset will allow us to go much further with less effort, ideal for long urban journeys where speed is the key. Mounted on sturdy double-wall aluminum rims.
To ensure it performs with its winning character on all types of terrain, the Calliope is fitted with SR Suntour XCM front suspension with lockout, which is fitted to all-terrain models from the top brands, allowing you to ride on uneven roads.
On any terrain, be it unpaved roads or in the urban jungle, we need powerful and efficient braking. Shimano MT200 hydraulic brakes or M375 mechanical brakes with 180mm discs on the front wheel and 160mm on the rear wheel will be essential for this.
The proven and solid Shimano Acera 8-speed gear system guarantees functional and fast gear changes, working in conjunction with the wide range of sprockets of the rear cassette.
Included in our selection of the best urban electric bikes, the Calliope could not be fitted with a more conventional seat, it is equipped with the comfortable Velo saddle and is completed by brown leather grips. Kickstand, a rear rack for carrying loads of up to 25kg, long urban mudguards on both wheels, and high-power LED light at the front and rear give this urban electric bike with a contemporary design an urban personality.
