Apex

€1,450.00
Availability:
Out of stock

Specifications

Electric System

Motor Bafang
Motor Type Rear
Motor Power 250W (45Nm) / 500W (80Nm)
Battery Type Li-Ion
Battery Capacity 420Wh (36V/11,2Ah) / 650Wh (36V/17,5Ah)
Battery Brand Samsung
Battery Voltage 36V
Display LCD Digital 450u (5 speeds) / LCD Colour 850C (9 speeds)

Frame

Frame Sizes M / L / XL
Frame Material Aluminium 6061

Shocks

Fork Suntour XCM 120 mm

Gears

Gears 10 Speeds
Derailleur Shimano Deore
Shifter Shimano Deore M6000 10V
Crankset 44T
Cassette 12-32T
Chain KMC

Brakes

Brakes Shimano M375
Brake handle Tektro Lever
Discs 180 mm \ 180 mm

Wheels

Wheel 28"
Rims Aluminium double wall
Tires Kenda 28" x 2,3"
Spokes Carbon steel with copper reinforced heads
Front hub Quando

Handlebar and Saddle

Stem 1"1/8 Ahead 31,8mm
Handlebar Promax
Headset 1"1/8
Saddle Velo Plush
Seatpost Classic

Accessories

Front Light LED
Rear Light LED
Pedals Wellgo Platform MTB
Mudguards Black flexible PVC
Kickstand Kickstand
Luggage Rack Optional

Dimensions and Weights

Lenght 177 cm
Width 63 cm
Bike Weight 19,5 Kg
Battery Weight 3 Kg
Total Weight 22,5 Kg

The manufacturer reserves the right to replace individual parts with components of the same or higher quality.

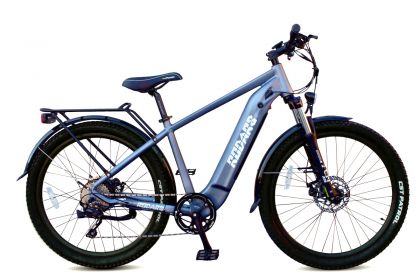

Apex Electric Bicycle

Description Apex MTB electric:

 One of the jewels included in the select collection of electric MTBs available in 500w and 250w wheel motor, with a hydroformed frame specially designed to overcome the most embarrassing terrains and 6061 aluminum compounds with TIG welding and 5 years warranty, the Apex is a bike created to overcome the most adverse difficulties in any type of situation, but also designed for the comfort of its rider.

  Two powerful 27.5" x 2.3" wide Kenda wheels, mounted on double-butted aluminum rims with reinforced spokes, seat post suspension, and SUNTOUR XCM 120mm front suspension will ensure extra comfort on any trail, whatever the terrain.

An advanced Shimano Deore 10-speed derailleur operated by two levers under the handlebars precisely arranged to control the gears at all times. A strong KMC chain keeps the bike moving.

An anti-prostatic seat mounted on a suspension Seatpost and adjustable handlebars are just some of the improvements you'll find on the Apex. All parts of the bike come with a 2-year warranty on both the electrical and mechanical systems.

The arrangement of the 36v x 500w and 250w Bafang motor located on the rear wheel and the 36v x 11.2ah Samsung battery of only 2.47 kilos located in the central part of the frame help to keep the center of gravity balanced, making the bike more manageable and respecting the geometry of the whole bike, something very important to get out of the most difficult situations in the middle of the mountain.

If you opt for a central motor, the extra weight located in the lower part of the unit considerably lowers the center of gravity, thus achieving a better riding sensation. By working with an effort sensor, instead of the conventional PAS pedal assistance, the range is increased by 25% with the same battery. The 8fun motor is among the most powerful on the market, second only to the BROSE motors. The mid-motor system includes a digital display and throttle. Also available are mountain models with integrated mid-motor such as the stamina and stamina fat.

  Like the other models, it has sensors on both brake levers to disconnect the motor in the event of even the slightest touch. To bring the bike to a complete stop, the Apex has prominent Shimano M375 disc brakes on both wheels, with 160mm discs. All components of the electrical system are connected to the 17A controller and this in turn to the digital display on the handlebars, which is the control panel for operating the electrical system and comes with a one-year warranty.

The total weight of the Apex is 21,5 kilos counting the 2,47kg of the battery in the 250w model and 22,5kg with the electric system and 500w motor, a quite adjusted figure thanks to a good choice of the parts that compose it looking for the most maneuverable possible in mountain situations, achieved thanks to the low weight and the balanced center of gravity.
